With the rapid advancement of laser technology, its application value in the medical field has become increasingly prominent. Laser-based medical solutions offer key advantages such as non-contact operation, high precision, minimal invasiveness, and operational flexibility. These benefits not only expand clinical treatment options but are also gradually replacing traditional therapies in certain areas, driving the overall improvement of medical technology standards. The global medical laser market is experiencing steady growth. According to a report by The Business Research Company, the market is projected to reach USD 9.31 billion by 2026, with a compound annual growth rate (CAGR) of 13.7%.

With continued breakthroughs in key technologies and core components, the performance of domestically produced medical lasers and control systems has improved significantly, accelerating the localization of medical laser equipment in China. It is worth noting that the high-end segment of the market remains dominated by international brands — presenting both a challenge and a strategic opportunity for domestic manufacturers.

As a core component supplier with 18 years of expertise in the optics field, Optizone Technology has established a comprehensive product portfolio for biomedical applications, including OCT module, sphere lens fiber, isolator, fiber optic rotary joint, variable optical delay line.

Key Technical Highlights

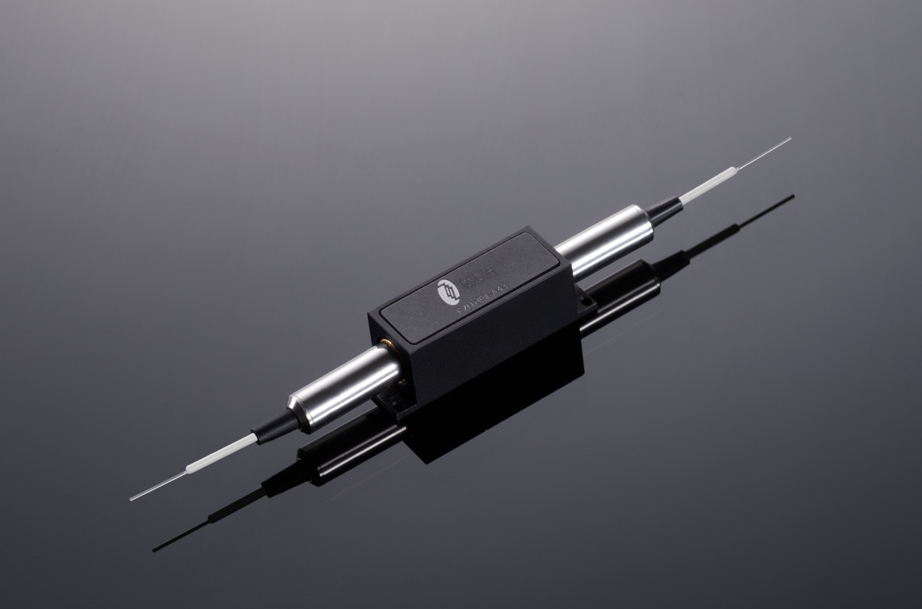

2μm High Power Optical Isolator (50W)

The 2 μm high-power optical isolator is primarily used in 2 μm thulium-doped lasers. The 2 μm wavelength falls within the eye-safe spectral region and exhibits unique absorption characteristics in biological tissues, polymers, and many other materials. It enables precise heating of extremely small areas with minimal damage, making 2 μm lasers well-suited for a wide range of material processing and laser surgical applications, including aesthetic procedures and laser ablation.

Features:

    1.Compact Size (64*18*15mm)

    2.Low Loss (0.8dB)

    3.High Handling Power (50W)

    4.High Isolation (26dB)

The 2 μm high power optical isolator plays a vital role not only in laser medical applications, but also finds broad use across other sectors due to its unique advantages. These include plastic welding of non-metallic materials (such as medical devices and cardiac stents), battery separator cutting, and LiDAR systems.

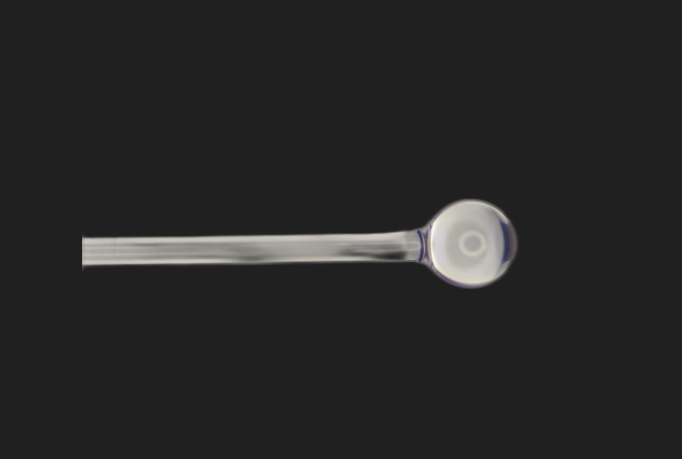

Sphere Lens Fiber (Gold-Platable)

Features:

1. 1.Compact size, short optical path, lightweight, suitable for mass production and packaging

2. 2.Simple coupling process with high repeatability and efficiency

3. 3.Wide range of lens curvature radius (customizable)

4. 4.High precision

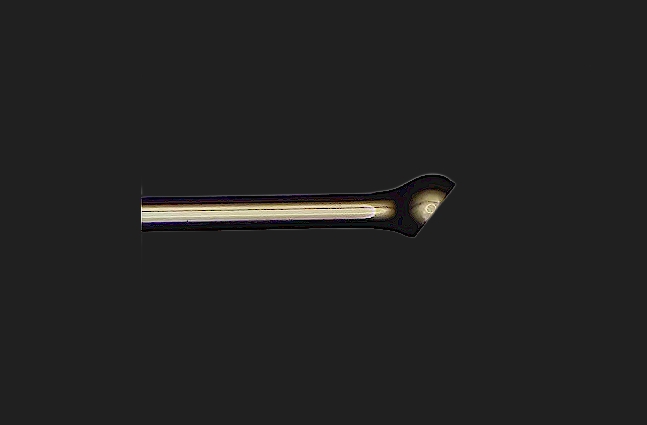

Inclined Sphere Lens Fiber (Gold-Platable)

Features:

1. 1. Compact size, short optical path, lightweight, suitable for mass production and packaging

2. 2.Wide range of lens curvature radius; customizable polishing angle

3. 3.Sphere lens with intentional center offset

4. 4.Precision polishing process


At present, China's laser medical device industry has developed considerable technological strength and market competitiveness. However, the high-end segment is still dominated by international brands. Driven by supportive national policies and increased R&D investment from domestic enterprises, the market share of domestically produced laser medical devices is expected to exceed 40% within the next five years. Optizone Technology will continue to focus on technological innovation, providing core components to support the localization and advancement of the industry.
