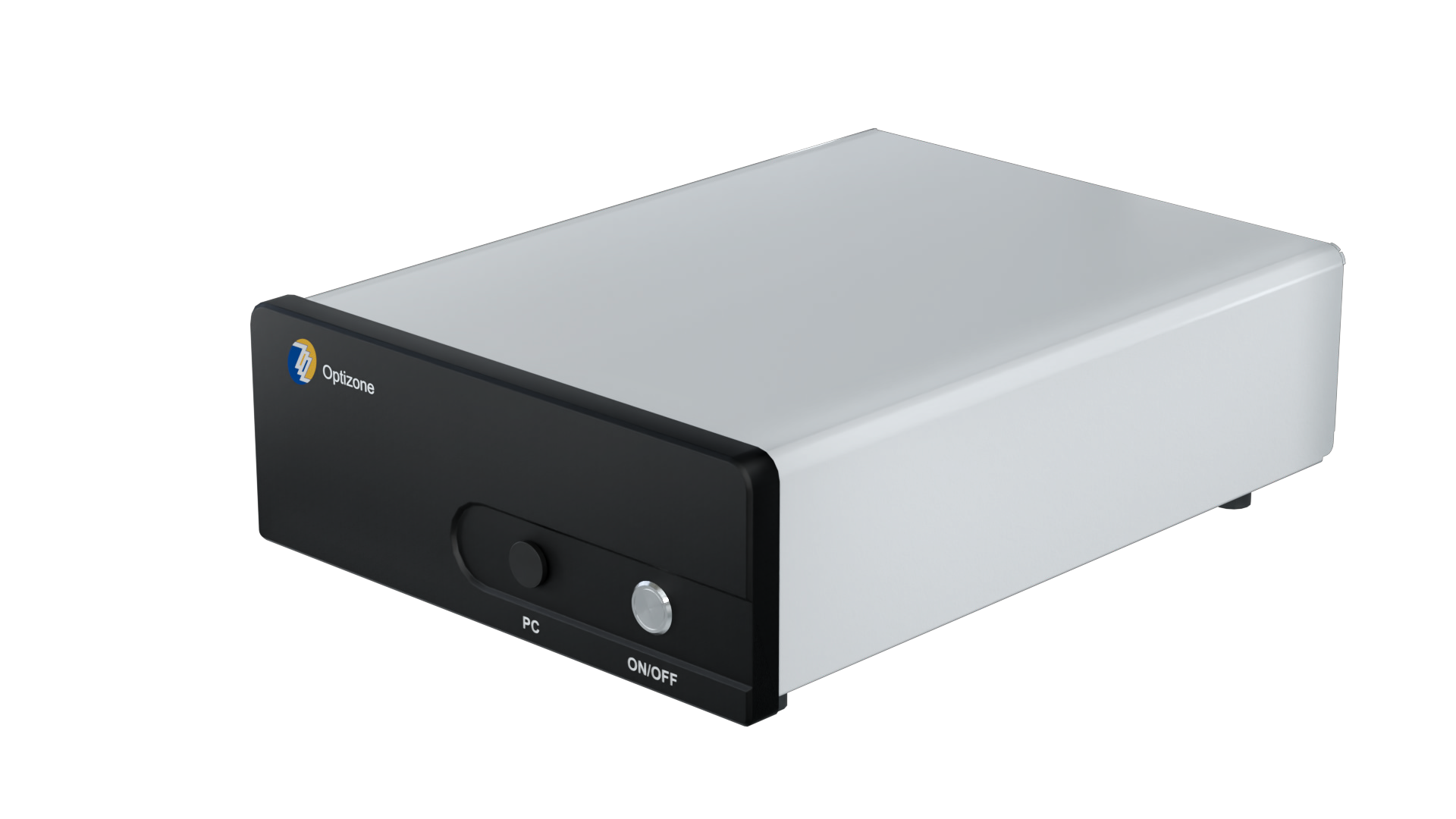

Odinopti NDT Equipment



Odinopti NDT Equipment

Insight · Precision


·Multidimensional       ·High Resolution       ·Real-Time Inspection

Odinopti® non-destructive testing equipment uses OCT technology for non-contact inspection. It projects a beam onto the object and captures backscattered signals from various depths to produce real-time 2D or 3D images with micrometer-level resolution and no radiation risk.



Ideal for diverse NDT applications, especially real-time laser welding inspection, it extracts weld keyhole morphology and monitors melt depth, enabling rapid scanning and immediate data feedback to optimize weld quality, traceability, and production efficiency.


Principle


Applications

  • Real-time Monitoring of the Laser Welding Process (Inlcuding penetration depth detection for weld seams, applicable to industries such as automotive manufacturing, new energy batteries, aerospace, and electronic circuits)
  • Additive Manufacturing Inspection
  • PCB/Semiconductor Inspection
  • Non-Destructive Testing of Transparent/Semi-Transparent Materials (Applicable to displays, orthokeratology lenses fitting, and contact lens manufacturing)
  • Thin Film/Coating Inspection (capsule sealing)


Features

  • Non-Contact Detection
  • Real-Time Monitoring
  • High Resolution (Achieving micron-level or sub-micron-level imaging)
  • Depth Information Integration
  • 2D/3D Imaging Options
  • Unlimited Sampling Volume
  • Data Recording and Management

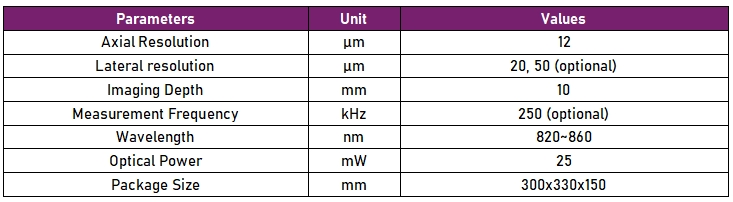

Products Specifications


Nondestructive Testing(NDT) Applications

1) Laser Welding Real-Time Inspection

Advantages

  • Unaffected by external optoelectronic signals, ensuring high accuracy and stability
  • Extracts weld keyhole shape and precisely measures weld depth
  • Real-time data feedback for comprehensive process monitoring
  • Integrates depth information for thorough analysis
  • Enables data recording and traceability to support analysis and production optimization


Application Scenarios

· Automotive     · New Energy Batteries     · Aerospace

· Electronics      ·  Electrical Engineering

· Especially suited for copper and aluminum welding inspections


2) 3D Contour Defect Inspection

Advantages

  • Multi-layer NDT imaging with excellent axial resolution
  • High efficiency, unaffected by ambient light or noise


Application Scenarios

· Display Manufacturing

· Mobile Phone Lens

· Semiconductor Inspection

· Tablet/Capsule Inspection

· Orthokeratology/Contact Lens Manufacturing


3) Additive Manufacturing Process Real-Time Inspection

Advantages

  • Characterizes the powder bed, differentiates melted from unmelted powder
  • Measures subtle height irregularities in metal powder beds


Application Scenarios

· Additive manufacturing selective laser sintering process

· For translucent materials (e.g., polymers), provides high-resolution, nondestructive tomographic imaging.
